Key Features
Design
Designed to meet multiple monitoring requirements for antenatal monitoring, this mother and fetal monitor displays 9 parameters: Electrocardiogram (ECG), Non-Invasive Blood Pressure (NIBP), Oxygen Saturation (SpO2), Respiratory Rate (RESP), Temperature (2-TEMP), Heart Rate and PR Interval (PR/HR), Fetal Heart Rate (FHR), Tocolytics (TOCO), and Fetal Movement (FM). This monitor has a built-in 150mm thermal printer and long-term data storage ability. Its probes are sensitive, accurate and reliable.
Usability
A large built-in rechargeable battery allows mothers to move at their convenience during labor instead of being confined to a bed. Moreover, medical providers can rely on a playback and browse function to view waveform history and monitor the patient’s data record.
Display

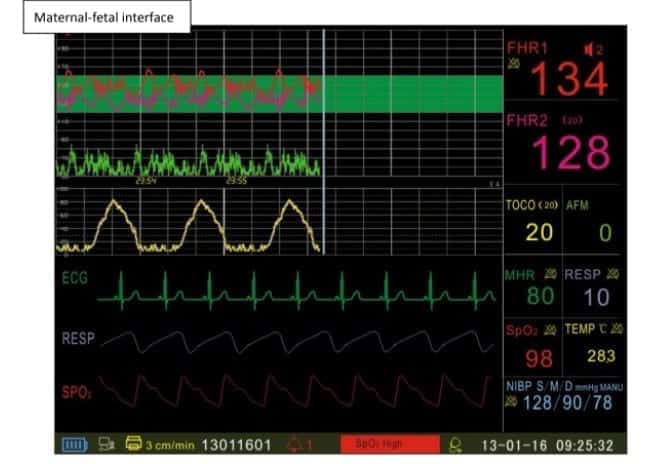

This monitor has a 12.1 inch TFT screen that can display FHR, TOCO, FM, maternal parameters, time, date, volume, etc. The monitor has two interfaces, fetal or maternal-fetal.
Specifications
Measurements
- Dimensions: 35 x 32 x 8.5 cm
- Weight: 3kg
Fetal Heart Rate
- Working frequency: 1.0MHz
- Strength: <5 mW/cm²
- Transducer: Multi-crystals, wide wave beam, pulsed-wave working mode
- Signal processing: special digital signal
- Measurement range: 50-210 bpm / 30-240 bpm
- Alarm Range:
- High limit: 160, 170, 180, 190 bpm
- Lower limit: 90, 100, 110, 120 bpm
- Maximum audio output: 1.5 W
TOCO
- Measurement range: 0-100 units
Maternal SpO2 measurement
- Measurement scope: 70%-99%
- Measurement accuracy: ±3%
HR Measurement
- Measurement scope: 30 bpm – 240 bpm
- Measurement accuracy: ±2 bpm
NIBP Measurement
- Systolic pressure measuring range: 6.7 – 32.0kPa (50 – 240mmHg)
- Mean pressure measuring range: 3.4 – 26.6kPa (25 – 200mmHg)
- Diastolic pressure measuring range: 2.0 – 24.0kPa (15 – 180mmHg)
- Accuracy: ±1kPa (±8mmHg) or reading ±5%, whichever has the greater absolute value
- Pulse rate measuring range: 40 bpm – 240 bpm
- Pulse rate accuracy: ±2 bpm or reading ±5%, whichever has the greater absolute value
- Measurement mode: manual / automatic NIBP measurement
Body Temperature
- Range: 0 – 50°C
- Resolution: 0.1°C
- Accuracy: ±0.1°C (excluding sensor error)
Display
- Resolution: 800 x 600
Power
- Power supply: AC 100-240V, 50/60Hz
- Power Consumption: ≤80VA
- Battery: 14.8V Li-ion battery
Operating Environment
- Temperature: +5°C ~ +40°C
- Humidity: 30% – 70%
- Atmospheric pressure: 86kPa – 106kPa
Transport and Storage
- Temperature: -10°C ~ +55°C
- Humidity: <93%
- Atmospheric pressure: 86kPa – 106kPa
Standard Accessories
- FHR1 probe (1x)
- TOCO probe (1x)
- Fetal movement marker (1x)
- Power adapter (1x)
- Power cable (1x)
- Belt (1x)
- Printer paper (150 sheets)
Optional Accessories & Add-ons
- Fetal wake-up device
- Touch screen
- Central station networking capability
- Connection with L8T32 wireless box
- Spo2 probe (5 pins)
- NIBP cuff (including tube)
- 3 in 1 probe (FHR tranducer, TOCO transducer, & Fetal Movement)
- Cart
Product Documents, Manuals & Brochures
Manual
Brochure

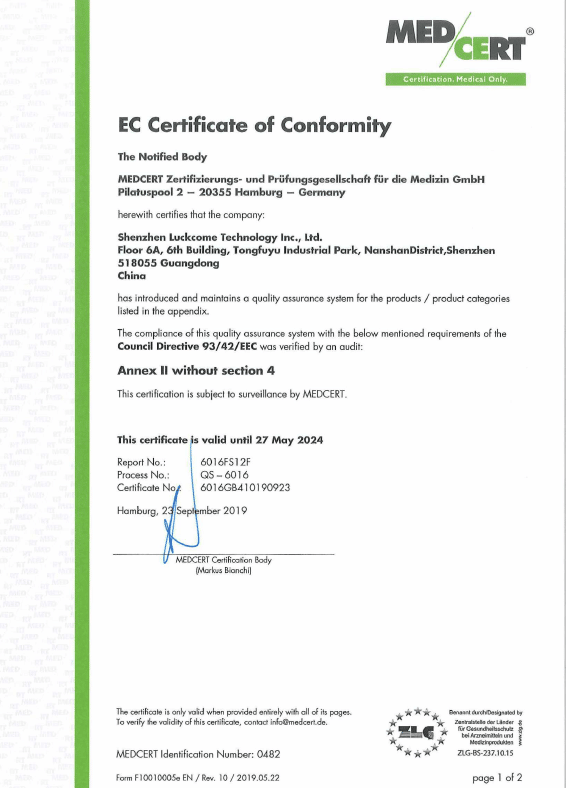

Regulatory Certificates

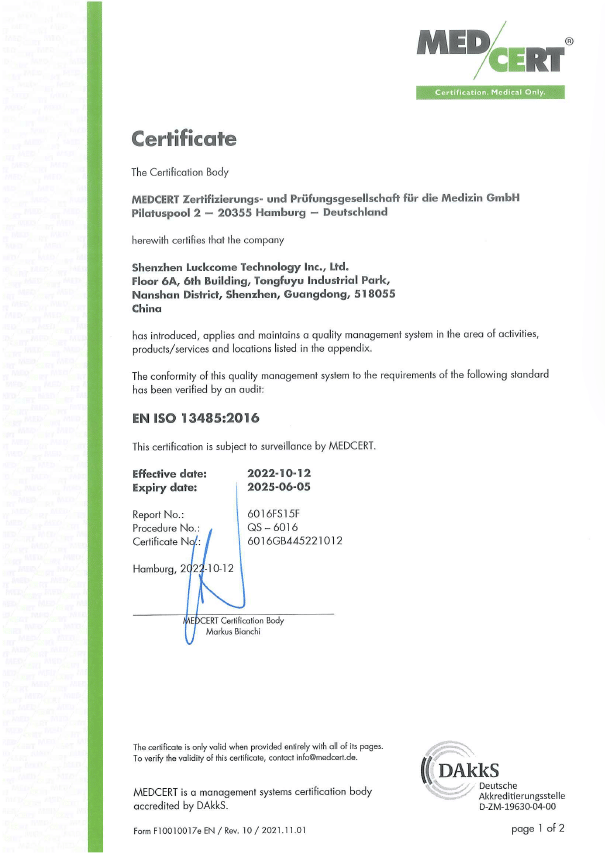

ISO 13485
ISO 9001
Videos
Not available at this time
FAQ
Not available at this time
Studies & Trials
Not available at this time
Package Contents
- 1x Fetal/Maternal Monitor L8P Main Unit
- 1x FHR1 probe
- 1x TOCO probe
- 1x Fetal movement marker
- 1x Power adapter
- 1x Power cable
- 1x Belt
- 150x Sheets of printer paper
- 1x User manual
- 1x Warranty card
