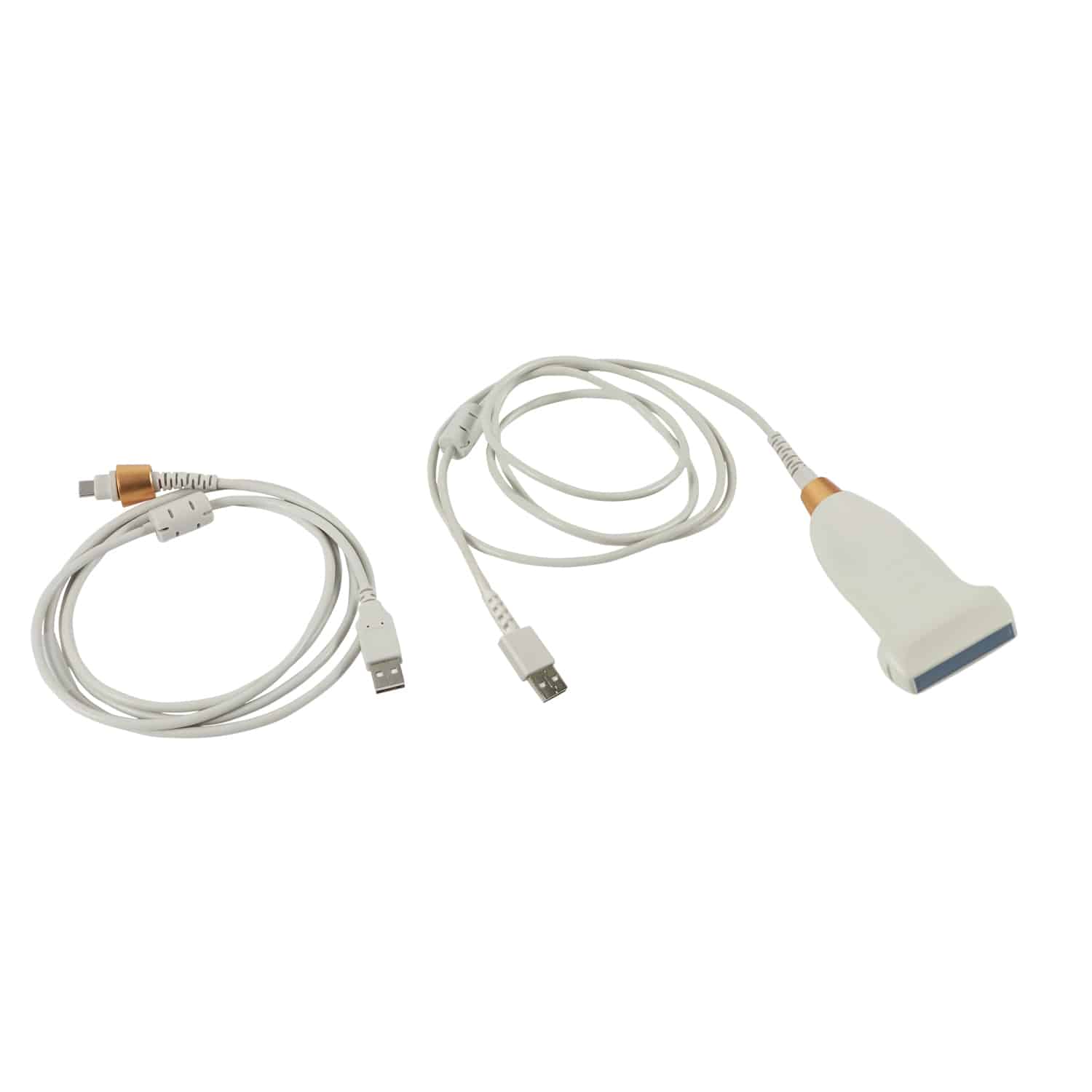

M SCAN B2 Probe 4 Probe with Type C cable 2
M SCAN B2 Probe 2 Probe with Tablet
M SCAN B2 Probe 3 Probe with Phone
M SCAN Convex Probe C2 1 Header

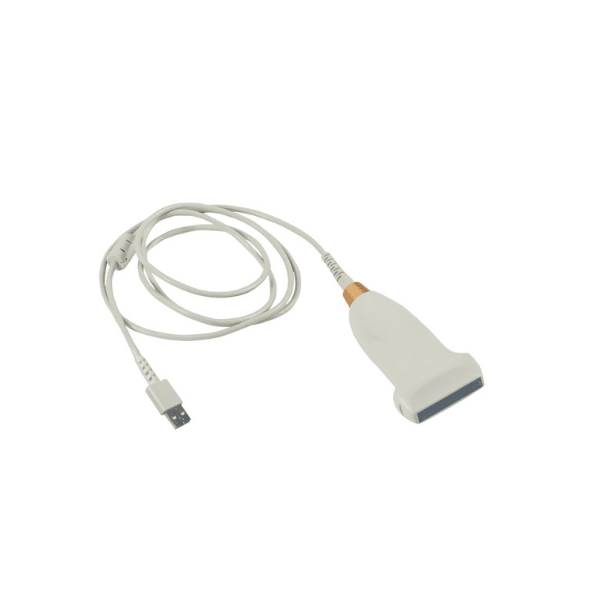

M-SCAN Ultrasound B2 – Linear Probe

Request Quotation
p

See price above for discounted price

Institutional & Business Buyers Only

Why can’t I see pricing?

The pricing we offer to our customers is manufacturer direct pricing and is only visible to our VIA Verified Buyer network. To request pricing for this product and speak to a sales representative, please submit a quote request. If you are a Distributor or NGO, you may be eligible to become a Verified Buyer. Click here to apply.

The M-SCAN Ultrasound B2 – Linear Probe, is a black and white portable, lightweight and power efficient ultrasound scanner that connects to tablets, smart phones and laptops.
• Minimum Order Quantity (MOQ): 1 device
• Seller Name: M-SCAN
• Seller Location: Uganda
• Warranty Term: 1 year
• Regulatory Approval: CE, Uganda National Drug Authority
• Product Variations: M-SCAN Ultrasound C2 – Colour Doppler Linear Probe, M-SCAN Ultrasound C1 – Colour Doppler Convex Probe, M-SCAN Ultrasound B1 – Convex Probe

We accept

SKU: MSCAN-B2 Categories: , , , , , Tag:

Description

The M-SCAN Ultrasound B2 - Linear Probe is a black and white portable, lightweight, and affordable ultrasound device. The device contains over 128 piezoelectric crystals giving it a good resolution comparable to the conventional ultrasound machines. The device works by a simple connection through a USB 2.0 port to a Windows OS laptop, tablet or mobile phone (sold separately). This is a linear black and white probe that is best suited for anesthesia, small parts, MSK, athletic medical, pericardiocentesis, and thoracentesis type scans.

Important Purchasing Information

Regulatory Restrictions : United States, Canada

1 day.

2 business days post documentation submission

MOQ Shipping Dimensions (Depth), cm = 8
MOQ Shipping Dimensions (Length), cm = 30
MOQ Shipping Dimensions (Width), cm = 21
MOQ Shipping Weight (G.W) (kgs) = 1.5

Key Features

Usability
The M-SCAN Ultrasound B2 – Linear Probe is user friendly and easy connect. It comes with a singular cable that can be connected to a laptop, tablet or smartphone (sold separately).

Design
This probe is ergonomically designed to be comfortable to use and easily fit in the pocket of a clinical coat for optimal transportability.

Affordability
M-SCAN probes are geared towards low to middle income economies.

Image Sharing
The images captured during the scan are stored directly on your device (mobile, tablet or laptop), making it easy to share the scan to different platforms.

Power Efficient
This device is very power efficient and can work on a fully charged laptop battery (41,998 mWh) for the entire day without needing to charge the laptop.

Specifications

Application

  • Black and White Linear Probe: Anesthesia, Small parts, MSK, Athletic medical, pericardiocentesis, thoracentesis etc.

Performance

  • System Scanning Depth – Linear probe: ≤70mm
  • Transducer Type: Linear array transducer
  • Imaging Modes: B-Mode, PW-Mode
  • Frequency: 7.5MHz (4-11MHz)
  • Probe Element: 128
  • Probe Port: USB 3.0 (Type-C port optional)

Measurements

  • Weight: < 150g

Computer Performance Requirements

  • Processor: Intel i3, 5th Generation and above
  • Processor Speed: 2.0 GHz and above
  • Operating System: Windows, 64 bit
  • RAM: 4 GB
  • HHD: 250 GB
  • Display: 1080p
  • USB Port: 3.0 or 2.0

Tablet Performance Requirements

  • Processor: Intel i3
  • Processor Speed: 1.9 GHz
  • Operating System: 64 bit
  • RAM: 4 GB
  • HHD: 2150 GB
  • Display: 1080p
  • USB Port: 3.0 or 2.0

Standard Accessories

  • USB Connector Converting USB 3.0 into type C (1x)

Optional Accessories & Add-ons

Not available at this time



Product Documents, Manuals & Brochures

mscan cataloge thumb

Probe Variations

Regulatory Certificates

CE cert thumb

CE Certificate

Videos

FAQ

Not available at this time



Studies & Trials

Not available at this time



Package Contents

  • 1x M-SCAN Ultrasound B2 – Linear Probe Main Unit
  • 1x USB connector
  • 1x Product manual

Warranty

Warranty valid through 12 months.

Testimonials

“The M-SCAN device has been very effective for me working on Kalangala island, the machine has enabled me scan my patients coming from other islands at very much ease with power efficiency and portability” – Joel Kibonabaka, Sonographer
