Key Features
Flow and Bubble
Versatile – can be configured for both flow, high flow and bubble operation according to your preference.
Visual Display Unit
Values of respiratory parameters displayed in large, bright characters for easy reading.
Compact Electronic Blender
Accurate delivery of gases with precise control of the proportion of air and oxygen.
Lightweight Patient Interface
Designed to eliminate damage to the nasal septum and delicate nostrils of the infant.
Universal Circuit Interface
Compatible with different circuits available in the market.
Shut Down Alarm
Continuous monitoring of pressure, FiO2 and apnea with an alert system.
Specifications
Measurements
- Base unit: 53.5 x 47.5 x 17.5 cm
- Pillar unit: 4.5cm square x 9 cm
- Control unit: 30 x 30 x 20 cm
- Total: 60 x 47.5 x 150 cm
- Weight: 15kg
Power
- Working voltage: 110 V/230 AC, 50/60 Hz
- Power consumption: 15 W
- Fuse rating: 4A / 2A
- Battery: 11.1 V, 2.6 Ah, Li-ion battery pack
- Battery back up: 1 hour
- Charging time: 8 hours
Performance
- Noise level: <50dB
- Display: 5.5″ (320 x 240 pixels graphical colour LCD)
- Blender: Electronic blender
- Calibration: Oxygen (user calibrated)

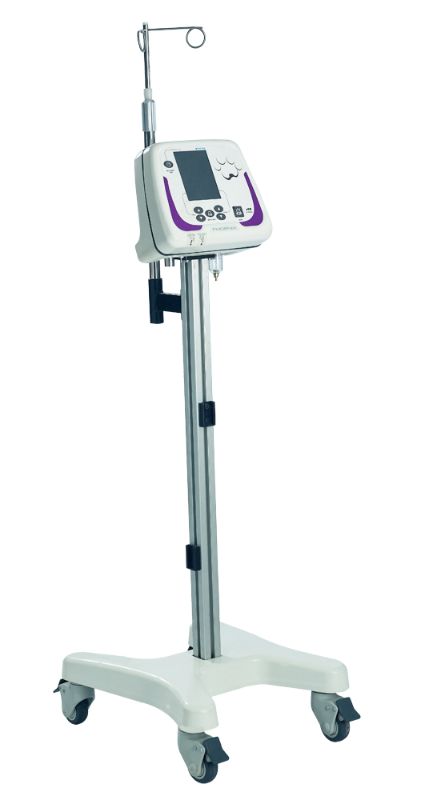

- Mobility: Four castors with brakes
- Oxygen control:
- Range: 21% to 100% FiO2
- Accuracy: ±2%
- Resolution: ±1%
- Flow control:
- Range: 0 LPM to 15 LPM (bar graph)
- Accuracy: ± 0.5 LPM
- Airway pressure:
- Range: 0cmH2O to 20cmH2O (bar graph)
- Accuracy: ± 1cmH2O
- Central gas supply:
- Working pressure supply: 3 to 6 bar
- Consumption of O2: 15 LPM (maximum)
- Consumption of air: 15 LPM (maximum)
Operating Environment
- Temperature: 18°C to 30°C
- Humidity: 10% to 75% RH
- Air pressure: 700-1060 hPa
Storage and Transportation
- Temperature: 5°C to 45°C
- Humidity: 10% to 95% RH
- Air pressure: 700-1060 hPa
Standard Accessories
- Single use patient circuit (3x)
- IV pole (1x)
- Nasal prongs (Sizes S, M, L – 1x each size) (3x)
- Bonnet (Sizes S, M, L – 1x each size) (3x)
Optional Accessories & Add-ons
- Servo Humidifier with single use chamber
- Servo Humidifier with reusable chamber
- Air compressor
- Reusable patient circuit
- High/Love Flow Nasal Canuala – Infant
- High/Love Flow Nasal Canuala – Neonatal
- High/Love Flow Nasal Canuala – Premature
Product Documents, Manuals & Brochures
Manual
Specifications
Ghana, India, Kenya, Nigeria, Tanzania |
Regulatory Certificates
ISO 13485 Certificate
CE Certificate
Videos
Not available at this time
Frequently Asked Questions
Not available at this time
Studies & Trials
Not available at this time
Package Contents
Warranty
This warranty covers repair/replacement of any defective hardware items, contingent to these defects having arisen only out of defective material or workmanship. If brought to the notice of Phoenix Medical Systems (P) Ltd in writing on or before the date of expiry of the warranty mentioned on the warranty card. The warranty is applicable for a period of 12 months from the date of commissioning or 13 months from the date of dispatch from Phoenix Medical Systems (P) Ltd, whichever is earlier. The parts or products not manufactured by Phoenix Medical Systems (P) Ltd but supplied as a part of an equipment shall be covered by this warranty.
The warranty does not cover:
Misuse, negligence, accidents and improper handling. Improper installation or maintenance practice or any alteration carried out on the equipment. Wear and tear occurring due to normal usage. Consumables such as skin temperature probe, CFL lamps carry a warranty of six months.
