Patient Monitor SPR9000A

p

See price above for discounted price

The pricing we offer to our customers is manufacturer direct pricing, and is only available to our VIA Verified Buyer network. Please request a quote for more information, or sign up as a Verified Buyer to be able to log in and view pricing and place orders.

The Patient Monitor SPR9000A is a highly versatile patient monitor with multiple parameters. It can be used for neonatal, pediatric or adult patient monitoring.
• Minimum Order Quantity (MOQ): 1 device
• Seller Name: Anjue Medical
• Seller Location: China
• Warranty Term: 1 year
• Regulatory Approval: ISO 9001, ISO 13485

Additional information

Dimensions 47 × 37 × 24 cm

Description

The Patient Monitor SPR9000A is a highly versatile patient monitor with multiple parameters. It can be used for neonatal, pediatric or adult patient monitoring. Its standard parameters are Standard parameters: 5-lead ECG, SpO2 (F-5), NIBP, TEMP, RESP, PR, HR, but it also features multiple add-on features and optional accessories that allow customers to customize this monitor to meet their needs.

Key Features

Design
This patient monitor is designed to be highly versatile to customer needs. It features a separated parameter board (ECG, NIBP, SpO2); 7-lead ECG waveforms display in phase; real time S-T segment analysis, and ARR analysis; dynamic waveforms capture; SpO2 Pitch Tone Variation and Drug Dose Calculation; and selectable parameter waveform and character colors. It also has an efficient resistance to defibrillator and HF knife interference.

Usability
A wide variety of feature add-ons and optional accessories allow customers to customize this monitor for their needs. This monitor features a complete and flexible mounting solution for transportation and in-patient monitoring. This monitor has a standby mode for energy saving, a built-in rechargeable lithium battery, and battery volume checking, and AC power checking.

Display
The display is an 8.4” color TFT display, high resolution (800×600dpi), with multi-display functionality (Standard, Large font, Trend Coexis, OxyCRG dynamic, Bed-to-bed view display).

Specifications

Performance

  • Standard parameters: 5-lead ECG, SpO2 (F-5), NIBP, TEMP, RESP, PR, HR
  • Trace: 9 waveforms (7 ECG, 1 SPO2 and 1 RESP)
  • Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
  • Indicators: Power/battery indicator light; QRS beep and alarm sound
  • Trend: Parameter graphic and tabular trends
    • 5s/piece – 8 hours
    • 1min/piece – 168 hours (24hour × 7days)
    • 5min/piece – 1000 hours
  • NIBP Storage: 1000 groups
  • Alarm Storage: 200 groups
  • Full Disclosure Waveforms Storage: 3600S
  • SD Card External Storage
  • Alarms: Audible and Visual; User-Adjustable – High, Medium and Low limits (3-level)
  • Networking: Connected to central monitoring system; TCP/IP netting platform
  • Recorder: Build-in, thermal array
    • Plethysmogram caveform: 2 channels
    • Record mode: manual, on alarm, time-defined
    • Recording width: 50mm
    • Printing speed: 50mm/s
  • Recording type: Frozen waveform record, NIBP recall record, Trend table record, Alarm record, Fixed-time record

Power

  • Power: AC 100-240,50/60Hz
  • Battery: Rechargeable lead acid cell, 12v/4AH
  • Charge time: Max. 24 hours
  • Continuous work time: 4 hours

Measurements

  • Dimensions: 28 x 42 x 48 cm
  • Gross Weight: <6.5kg

Operating Environment

  • Temperature: 0~+40℃
  • Humidity: ≤85%

Transportation and Storage

  • Temperature: –20~+60℃
  • Humidity: ≤93%

Standard Accessories

  • 5 lead ECG cable (1x)
  • SpO2 probe (1x)
  • NIBP probe (1x)
  • Temp probe (1x)
  • Ground connecting liner (1x)
  • Chest electrode (10pcs/set) (1x)

Optional Accessories & Add-ons

  • Optional parameters: 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/Respironics Multi-gas, ICG/CO, FHR, FM, TOCO
  • Thermal printer & printer paper
  • Touch screen
  • Wireless central communication
  • F-6 blood oxygen module (with accessories – special module for newborns)
  • Non-invasive blood pressure (with 1 set of accessories)
  • 12-lead ECG (including accessories)
  • Suntech blood pressure module
  • Masimo SpO2 or Nellcor SpO2
  • Carbon dioxide EtCO2 (Respironics, domestic mainstream or domestic side stream)
  • Open CO2 port
  • VGA
  • Open AG port

Product Documents, Manuals & Brochures

Specifications

Regulatory Certificates

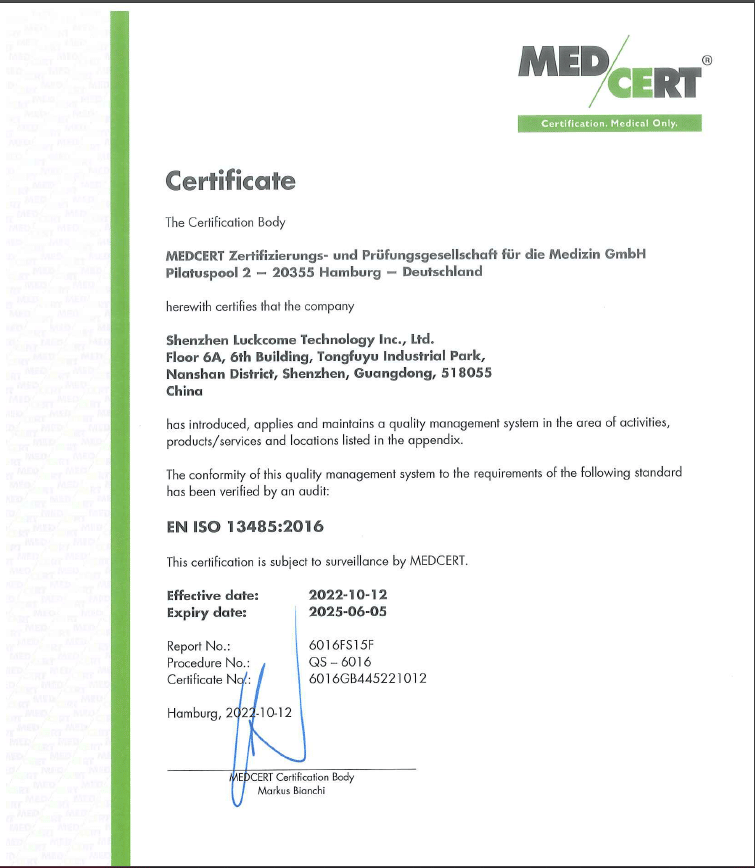

ISO 9001 Certificate

ISO 13485 Certificate

Videos

Not available at this time



FAQ

Not available at this time



Studies & Trials

Not available at this time



Package Contents

  • 1x 5 lead ECG cable
  • 1x SpO2 probe
  • 1x NIBP probe
  • 1x Temp probe
  • 1x Ground connecting liner
  • 1x Chest electrode set (10pcs/set)

Warranty

All Anjue Medical products come with a minimum one year free warranty. According to the warranty card enclosed in the packing box, the corresponding free warranty period is provided for the machine based on the date of production.
