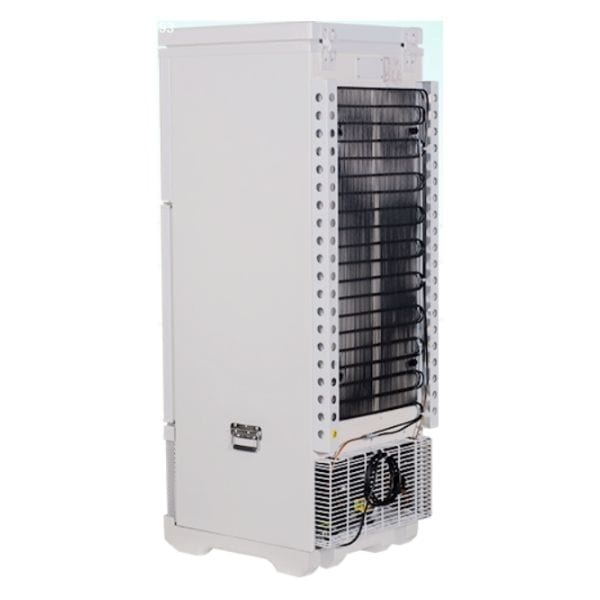

MetaFridge CFD-50 Vaccine Refrigerator

p

See price above for discounted price

The pricing we offer to our customers is manufacturer direct pricing, and is only available to our VIA Verified Buyer network. Please request a quote for more information, or sign up as a Verified Buyer to be able to log in and view pricing and place orders.

The CFD-50 MetaFridgeTM provides safe vaccine storage for health facilities, even in locations that may experience unstable or minimal mains power and extreme ambient temperatures.
● Minimum Order Quantity: 1 device
● Seller Name: Aucma
● Seller Location: China
● Warranty Term: 2 years
● Regulatory Approvals: ISO 9001; WHO PQS

Additional information

Weight 108 kg
Dimensions 158.8 × 65.5 × 54.5 cm

Description

The CFD-50 MetaFridgeTM provides safe vaccine storage for health facilities, even in locations that may experience unstable or minimal mains power and extreme ambient temperatures. The robust design includes an integrated voltage stabilizer that protects MetaFridgeTM from voltage spikes and brownouts that damage refrigerators. Extensively tested ColdSafeTM technology keeps vaccines cold through multi-day power outages with no risk of freezing. The onboard MetaFridgeTM information panel with integrated 30 DTR provides a range of alerts, including low remaining holdover time, to users and remote supervisors.

Key Features

Reliable Cold Storage in Unreliable Power Conditions
The Metafridge CFD-50 maintains vaccines at a stable 2-8°C temperature using patented ColdSafe Technology. It allows 5 days of holdover at 43°C ambient temperature and can operate continuously on less than 2 hours of power per day at 43°C ambient temperature. It requires less than 6 hours of power after installation to reach safe storage temperature with 2-3 days of holdover. Metafridge offers Grade A user-independent freeze protection.

Integrated Power Protection
Integrated protection during voltage spikes and brown-outs. Internal voltage stabilizer allows compressor to use a wide range of voltage input (82-290V).

Onboard Monitoring
Integrated 30 DTR display shows temperature and alarm history. Holdover indicator allows users to proactively protect vaccines. Visual and audible alarms for temperature excursions or improperly closed door. Metafridge measures and records performance data to enable diagnosis of issues. Optional telemetry module enables remote temperature monitoring and alerting.

Smart Design, Durable Construction
Upright and front-opening for user-friendly access. Compact form factor and lifting handles allow easy transport. Integrated plastic base prevents corrosion from wet floors. Condenser guards and rodent-proof grates protect components.

Field Testing
More than 40 units were tested in Kenya, Nigeria, and Ethiopia for 3-6 months, all with remote monitoring. Units were installed in both urban settings and rural areas typically served by SDD units. 99% of reported temperatures were between 2-8°C. Temperature excursions were due to frequent or prolonged door openings and power outages of more than 7 days. Local users were alerted by holdover indicator ahead of outage-related excursions and were able to relocate vaccines. Units operating in Kenya with moderate ambient temperature averaged 45 minutes per day of compressor run time.

Specifications

Measurements

  • Storage Volume: 50L
  • Gross Volume: 68L
  • External Dimensions: 65.5×54.5×159cm
  • Net Weight: 94kg

Performance

  • Ambient Operating Temperature: 10~43°C
  • Holdover Time without power at constant 43°C ambient temperature: 5 days (120 hours)
  • Holdover Time without power at constant 25°C ambient temperature: 8 days (192 hours)

Power

  • Input Voltage Range: 80~290V
  • Input Frequency: 50~60Hz

Standard Accessories

  • Integrated PQS prequalified voltage stabilizer (input range 82-290V) (1x)
  • Integrated PQS prequalified built-in 30-day electronic refrigerator temperature logger (30 DTR) (1x)
  • Vaccine storage trays (2x)
  • Wire shelves (3x)
  • Sets of locks & keys (2x)
  • Funnel (1x)
  • User documentation

Optional Accessories & Add-ons

  • MetaFridge Vaccine Trays
  • MetaFridge Remote Monitoring Module

Product Documents, Manuals & Brochures

Specifications

User Manual

Regulatory Certificates

Not available at this time



Videos

Not available at this time



FAQ

What are the installation requirements?
Apart from the box contents included, this unit requires the addition of 32 liters of clean drinking water during installation.

Studies & Trials

Not available at this time



Package Contents

  • 1x MetaFridge Main Unit
  • 1x Integrated PQS prequalified voltage stabilizer (input range 82-290V)
  • 1x Integrated PQS prequalified built-in 30-day electronic refrigerator temperature logger (30 DTR)
  • 2x Vaccine storage trays
  • 3x Wire shelves
  • 2x Sets of locks & keys
  • 1x Funnel
  • User documentation

Warranty

2 year standard warranty



Testimonials

Not available at this time
