Pocket Colposcope from Calla Health
Pocket Colposcope from Calla Health - Image 2

Pocket Colposcope from Calla Health

Request Quotation

Institutional & Business Buyers Only

Why can’t I see pricing?

The pricing we offer to our customers is manufacturer direct pricing and is only visible to our VIA Verified Buyer network. To request pricing for this product and speak to a sales representative, please submit a quote request. If you are a Distributor or NGO, you may be eligible to become a Verified Buyer. Click here to apply.

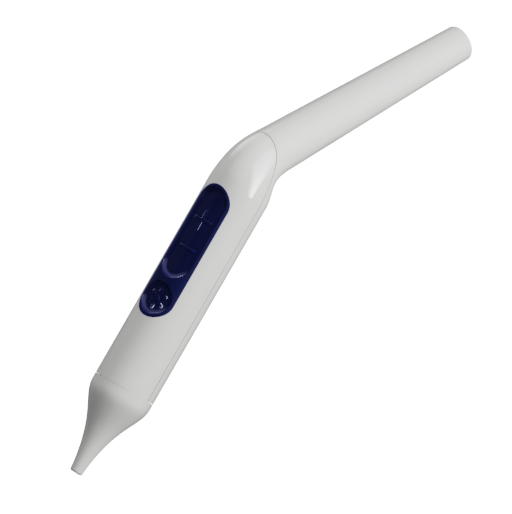

The Pocket Colposcope is a low-cost, portable colposcope for speculum-based gynecological exams.
• Minimum Order Quantity (MOQ): 1 device
• Seller Name: Calla Health Foundation
• Seller Location: The United States
• Warranty Term: 1 year
• Regulatory Approval: FDA, ISO 13485

We accept

SKU: calla_pocket_colp Categories: , , , ,

Description

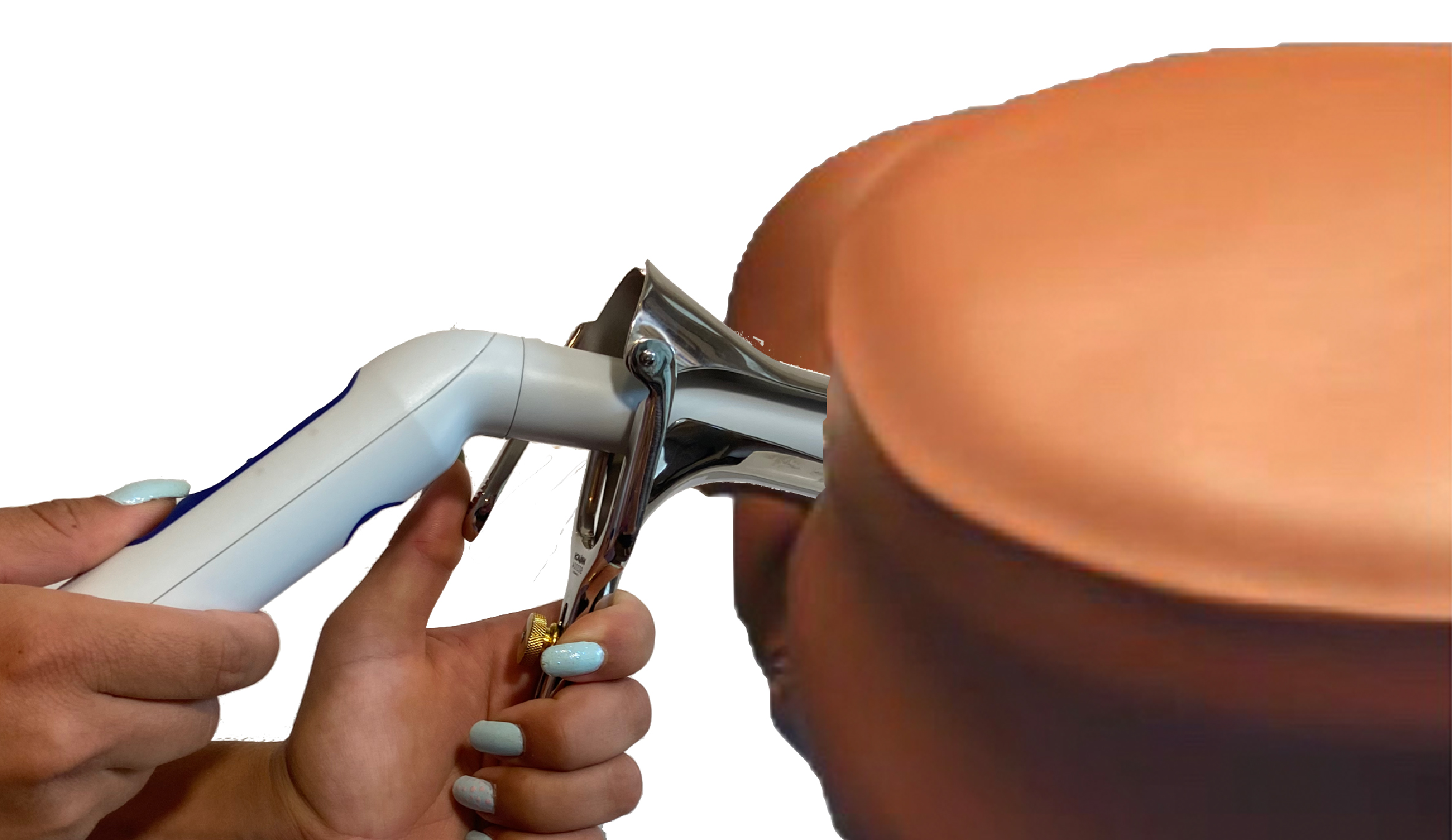

The Pocket Colposcope has the form factor of a tampon with comparable resolution and field-of-view to a state-of-the-art digital colposcope. The design is unique compared to traditional clinical colposcopes and redesigned, low-cost colposcopes, because it re-imagines the way a gynecological exam is performed. Rather than visualizing the cervix from outside the speculum (which colposcopes do), the Pocket Colposcope is used inside the speculum, enabling a close-up view of the cervix (3 cm vs. 30 cm away) with consumer-grade white and green LEDs and a 5-megapixel camera.

Important Purchasing Information

From 2 business days

MOQ Shipping Dimensions (Depth), cm = 35
MOQ Shipping Dimensions (Length), cm = 13
MOQ Shipping Dimensions (Width), cm = 5
MOQ Shipping Weight (G.W) (kgs) = 1

Key Features

  • Resting Design: The Pocket Colposcope is designed to rest on the speculum during exams, removing the need for an external stand.
  • Button Placement: Buttons are placed along the top of the handle for intuitive toggling between LED light and zoom settings.
  • Trigger Button: A trigger button on the handle enables easy image capture with the hand and wrist in a neutral position.

  • Image capture software with timer for contrast agent administration. Option to become a beta tester of our new software that will have full EMR solution

  • Capture biopsy samples while using the Pocket colposcope to visualize the cervix.

  • Full technical support for 1 year

Zoom:

  • Two Zoom Settings:
    • Wide-field mode for visualizing the entire cervix.
    • High-resolution mode for focusing on suspicious areas.

Green and White LEDs:

  • White LEDs: Used for visualizing acetowhitening, with toggling between low-light and high-light settings based on user needs.
  • Green LEDs: Designed for visualizing cervix vasculature.



Specifications

  • Magnification: 6.33x to 80x
  • Working Distance: 5 to 35 mm
  • Field of View (FOV): 7 to 40 mm
  • Smallest Resolvable Feature: 4 to 30 µm
  • Weight: 0.11 kg
  • Overall Dimensions (w x h x l): 21 x 24 x 260 mm
  • USB Power Supply Voltage: 5 V DC
  • USB Power Supply Current: 500 mA

Transport / Storage / Operating Conditions:

  • Temperature: 0-40°C
  • Humidity: 0-10% Relative Humidity

Standard Accessories

  • USB-C adaptor (1x)

Optional Accessories & Add-ons

  • Reprocessing platform ($100)
  • Device stand ($5)
  • Service contract including additional year of technical support and additional year of device replacement ($500/device

    Product Documents, Manuals & Brochures

    svaas phoenix cpap specifications thumb

    Brochure

    Regulatory Certificates

    ISO 13485 thumb

    ISO 13485

    FDA cert thumb

    US FDA

    Videos

    FAQ

    Not available at this time



    Studies & Trials

    Package Contents

    • 1x Main Unit
    • 1x USB-C adaptor
    • 1x Instructions for use

    Warranty

    1 Year

    Calla Health Foundation (CHF) warrants the Pocket Colposcope to be free from defects in material and workmanship under normal use and service for a period of 12 months from the date of original purchase. CHF’s obligation under this warranty and any implied warranty is limited to the repair or replacement of any product, or part thereof, which has been returned to it or its Distributor within the applicable time period. This warranty does not apply to any product, or part thereof, which has been repaired or altered outside CHF’s factory in a way so as, in CHF’s judgment, to affect its stability or reliability, or which has been subjected to misuse, neglect, or accident..

    Testimonials

    Not available at this time
