MTTS Colibri Phototherapy

SKU: 3831 Category: Tag:

The pricing we offer to our customers is manufacturer direct pricing, and is only available to our VIA Verified Buyer network. Please request a quote for more information, or sign up as a Verified Buyer to be able to log in and view pricing and place orders.

The MTTS Colibri Phototherapy is uniquely designed with two canopies that provide maximum exposure to the LED light and don’t interfere with radiant warmers, allowing it to be used in combination with any radiant warmer, infant bed or incubator available on the market to deliver effective phototherapy treatment while supporting developmental care.
• Units per Pack: 1
• Minimum Order Quantity (MOQ): 1
• Company Location: Vietnam
• Warranty Term: 1 year
• Regulatory Approval: CE, ISO 13485

Description

The MTTS Colibri Phototherapy is the most common treatment for reducing high bilirubin levels that cause jaundice in newborns. Colibri Phototherapy is a low-cost, high-performance, and compact overhead phototherapy unit providing high intensity light for treating hyperbilirubinemia in premature and full term neonates.

Key Features

Design

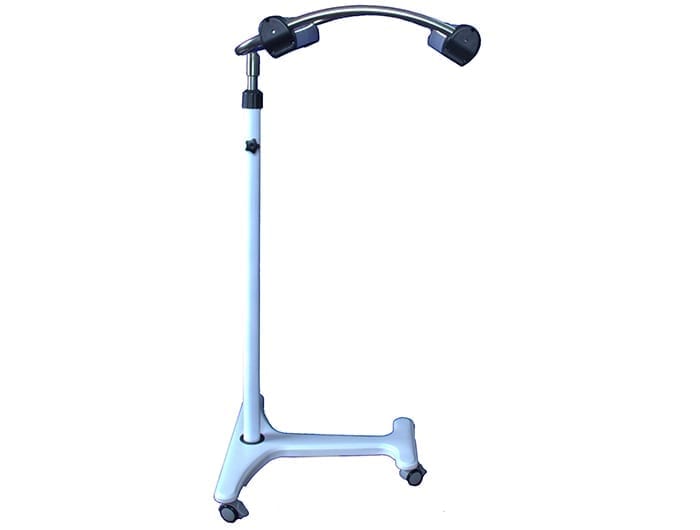

The stand is an adjustable height (115-140cm from the light source) to suit different bed heights. The LED lights are also adjustable in their height to maximize skin surface area exposure.

Efficient and Safe
Uses the optimal light spectrum for treatment of jaundice. Energy saving, medical-grade power supply with 3 prong connection for safe electrical grounding (Class I). The durable caster wheels can be locked when stationary.

Display/Controls

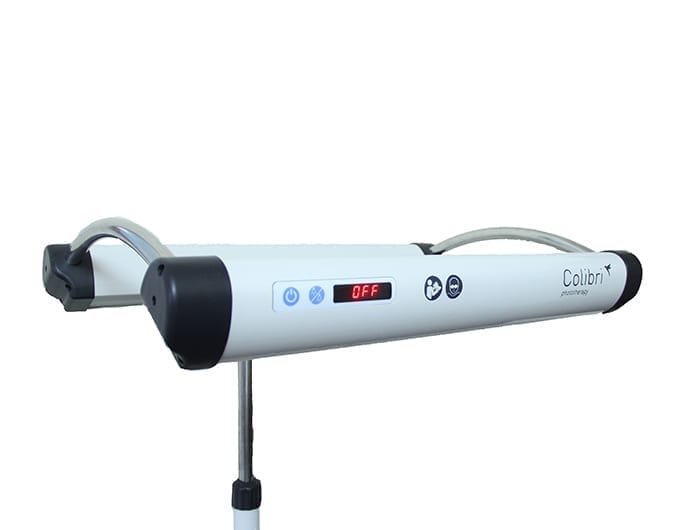

The display includes a bright, ‘across the room’ readable LED display that shows treatment time,, total system time counter (lifetime), total intensive mode system time counter (lifetime), and standard/intensive mode indicator. The intuitive control panel has an On/off button and a control button to toggle between normal and intensive mode.

Specifications

Dimensions and Weight

  • Unit dimensions (max height): 60 cm x 55 cm x 155 cm
  • Unit dimensions (min height): 60 cm x 55 cm x 130 cm
  • Height Adjustment: 25 cm
  • Net Weight: 16 kg
  • Performance

  • Light spectrum: 445 to 465 nm (peak 455 nm)
  • Lamp duration: 44,000 hours at maximum temperature
  • Average spectral irradiance

  • Standard Mode: > 33.0 µW.cm-2.nm-1
  • Intensive Mode: > 57.6 µW.cm-2.nm-1
  • Effective surface area: 50 cm x 30 cm
  • Irradiance uniformity ratio: 0.56 (IEC compliant –> 0.4)
  • Electrical

  • Power characteristics: 60W, 100-240VAC, 47/63Hz
  • COTS External PS: International medical safety approvals
  • ANSI/AAMI/EN 60601-1, UL/TUV
  • Class I construction is standard (ground required)
  • 100k hours MTBF
  • Energy star efficiency level V compliant
  • RoHS 2 compliant
  • Over voltage / over current protection
  • Operating Environment

  • Ambient temp: +10°C to +35°C
  • Humidity: 0% to 90% RH non condensing
  • Atmospheric pressure: 70-106kPa
  • Transport and storage

  • Ambient temp: 0°C to +50°C
  • Humidity: 0% to 90% RH non condensing
  • Atmospheric pressure: 70-106kPa
  • Standard Accessories

  • Eye Patch Set (5x size S, 5x size M, 5x size L)
  • Mains Power Cable (1x) (choose one of EU Standard, US/VN Standard, UK Standard, AUS Standard, or India Standard)
  • Optional Accessories & Add-ons

  • Eye Patches (size S, M, or L)
  • Battery Backup – 2 hour internal
  • Battery Backup – 12 hour external
  • Lightmeter
  • PCB LED
  • PCB Controller
  • Power Supply SINPRO
  • Product Documents, Manuals & Brochures

    Manual

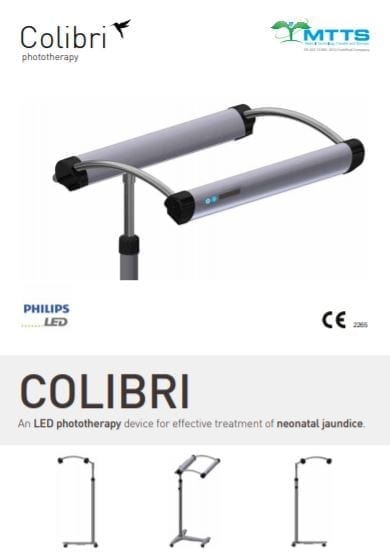

    Brochure

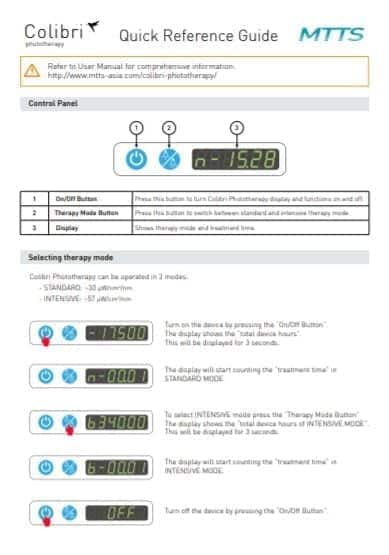

    Quick Reference Guide

    Assembly Guide

    Warranty Policy

    Regulatory Certificates

    ISO 13485 Certificate

    Videos

    Not available at this time



    Frequently Asked Questions

    Not available at this time



    Studies & Trials

    Not available at this time



    Box Contents

  • 1x Main Unit
  • 5x Eye Patch – S
  • 5x Eye Patch – M
  • 5x Eye Patch – L
  • 1x AC Chord (Mains Power Cable)
  • 1x Assembly Instructions (EN, FR, ES, VN)
  • 1x Quick Reference Guide (EN, FR, ES, VN)
  • Warranty

    Standard warranty of 1 year subject to MTTS policy. Please see Product Resources box for a downloadable copy of MTTS warranty information.

    Testimonials

    Not available at this time
