Important Purchasing Information
Unable to ship to: Austria, Belgium, Bulgaria, Canada, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom
2 days
MOQ Shipping Dimensions (Depth), cm = 28
MOQ Shipping Dimensions (Length), cm = 33
MOQ Shipping Dimensions (Width), cm = 13
MOQ Shipping Weight (G.W) (kgs) = 3
Key Features
- Full Turnkey Solution: Combines a digital colposcope with a thermocoagulator for a comprehensive screen-and-treat program.
- Single Sitting Treatment: Addresses the challenge of patient follow-up by offering diagnostic and treatment services in one visit.
- Battery Operated: The only portable electrosurgical unit suitable for low-resource settings.
- Smoke Evacuation System: Ensures a safe and clean operating environment.
- Patient Safety: Features multiple audiovisual cues to enhance safety.
- Lightweight and Ergonomic Design: Easy to handle and operate.
- Safe and Effective: Suitable for outpatient procedures with minimal pain and downtime.
- Automated Timer: Enhances patient safety by automating treatment duration.

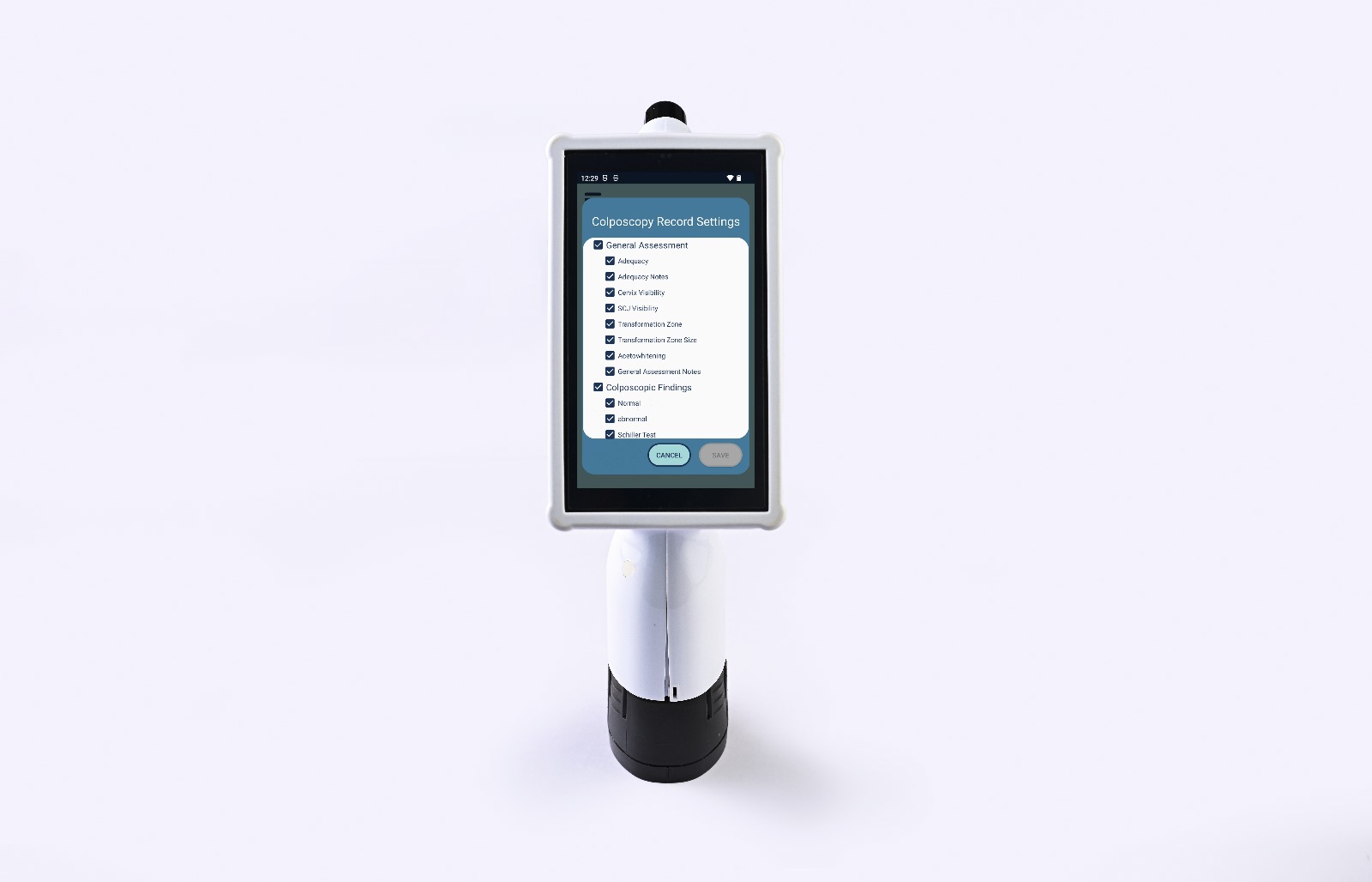

Colposcope:
- High-Resolution Camera: Best in class with a resolution of 2880×2016 px.
- Superior HD Image Quality: Full-color imaging with an optional green filter.
- 5-inch Digital Touchscreen: Enhances visualization and examination with zoom capabilities.
- Magnification: 4-10x magnification for detailed examination.
- Anti-Glare Cross Polarization: Reduces glare for clearer images.
- Connectivity: Can be connected to Wi-Fi, HDMI, and Bluetooth.
- Advanced Software: Includes annotation capabilities, telehealth integration, unlimited web storage, and secure sharing.
- Handsfree Operation: Features “high-five” image capture and integrated lighting for ease of use.
Specifications
- Working Distance: 10 to 40 CM
- Focus Mechanism: Manual
- Digital Magnification: 1x to 4x
- Field/Direction of View: 15.6°/ 0°
Transport and Storage
- Ambient Temperature: 10° to 40° Celsius
- Relative Humidity: 0% to 80% non-condensing
Wireless Communication
- Wi-Fi IEEE 802.11: ac/a/b/g/n
- Transmission: 2.40 to 2.48 GHz at 16dBm
Standard Accessories
Optional Accessories & Add-ons
- Tripod
- Additional 16mm flat probe
- Additional 19mm flat probe
- Additional 19mm nipple probe
- Additional Li-ion battery
- Additional handle
- Additional battery charger
- Additional carrying case
- Additional battery boot
Product Documents, Manuals & Brochures
Brochure
Regulatory Certificates
FDA Certificate
Videos
Not available yet
Testimonials
Smyta Joshi, MD Hirabai Hospital Pune, India
Dr. Kofi Effah , Cervical Cancer Prevention and Training Centre, Catholic Hospital, Battor, Ghana
FAQ
How do I know that thermocoagulation™ is as effective as cryogenic therapy?
Literature studies have validated that the outcome clinical efficacy is as good or better with thermocoagulation™ as compared to freezing. Refer to Duncan’s studies as shown in Dolman’s meta-analysis in the website educational section. The Liger thermocoagulator™ uses the latest state-of-the-art technology to reach and maintain the treatment tip accurately at temperature within 0.2°C.
What is cold coagulation as compared to thermocoagulation™?
How long and at what temperature should pre-cancerous cervical lesions be treated?
How many treatments can I expect with a full battery charge?
How do I clean the Probe?
The full high-level sterilization is given in the IFU that was sent with each unit on page 5 column 2. Many users follow the method below for cleaning and Hi-level disinfection of the probes:
Place the silicon cap firmly over the connector end. Clean any debris off the probe with mild detergent and water using a soft cloth or soft brush, then rinse in clean water.
Place the probes upright in a cup (approximately 5- 6” deep) of ~2.5% gluteraldeyde (Cydex) for 20-60 minutes (some sites use a 0.5% Chlorine solution-Chlorox).
This allows the connector end not to be immersed in solution which is not necessary as the connector end is not inserted into the patient nor contacts the patient and need not be sterilized.
Some users apply a heat cycle of the device to assure that the heated end has reached a sterilization temperature but this is unnecessary and regulatory agencies have not approved this procedure for sterilization. It certainly does sterilize the tip as all viral proteins are denatured above 60’C.
Rinse the probe end (not the connector end with the silicone cap) with clean, non-contaminated water, thoroughly dry the probe in air.
Wrap in clean material to keep it from being contaminated before next use.
The handle can, if needed, be wiped clean with a cloth dampen with a small amount of alcohol.
Is there any difference between the two batteries in the pack?
What is the depth of tissue destruction for a 20 second/100°C cycle?
How does the thermocoagulator™ compare to cryotherapy?
The thermocoagulator™ is quicker, easier and simpler to use. The thermocoagulator™ procedure is approximately 20 seconds per treatment as compared to cryotherapy which requires 11 minutes per treatment. The thermocoagulator™ has easy to use rechargeable batteries that use minimal energy, whereas cryogenic requires costly replacement gas cylinders.
What's the expected lifespan of the batteries?
over a two year period. This included 1300 heating cycles on the two batteries with a recharge on the battery every 30 cycles.
Studies & Trials
Not available yet

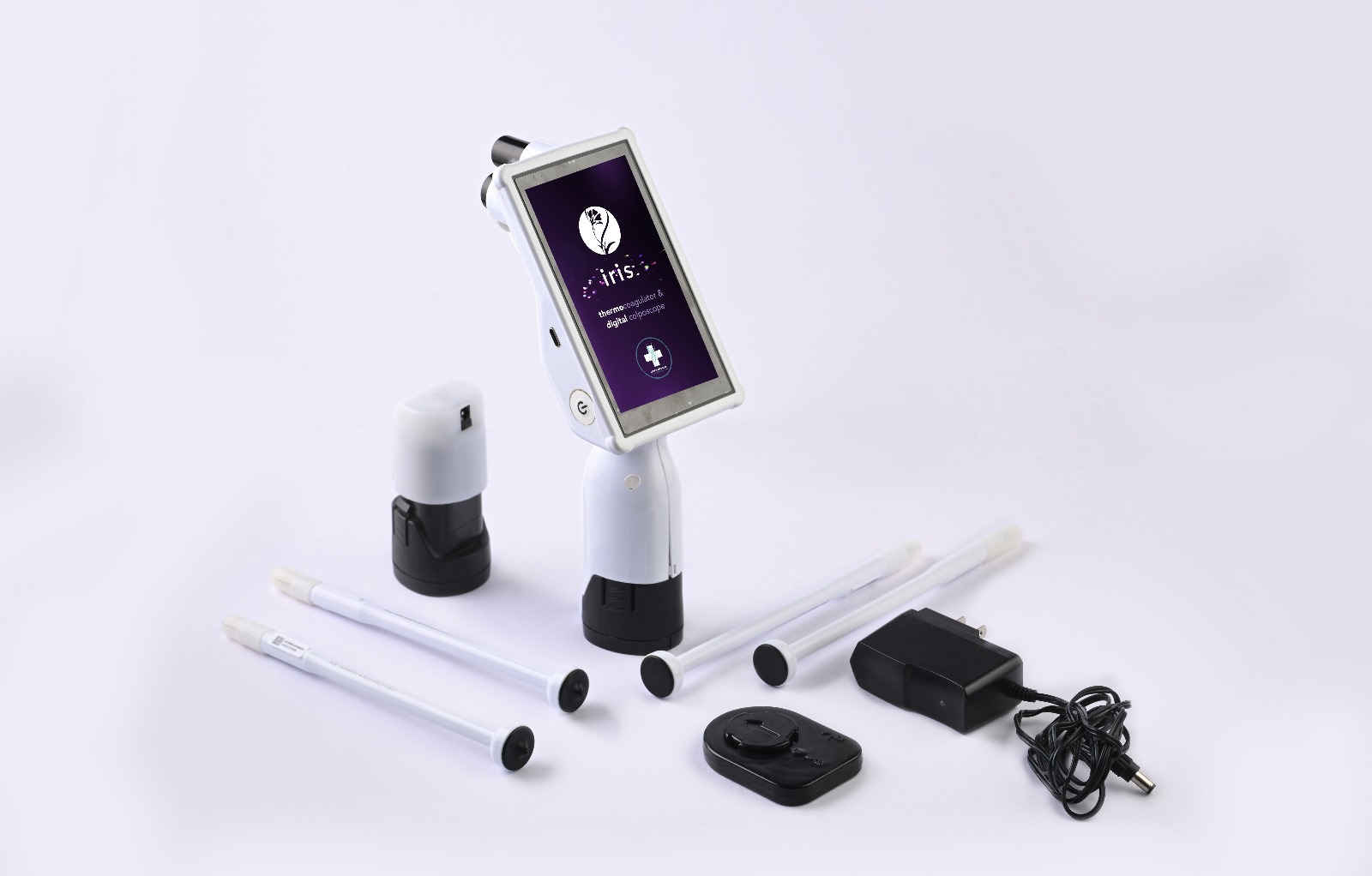

Box Contents
- 1x Iris Main Unit – Including 1x Handle
- 2x 19mm Flat probe
- 1x 19mm Nipple probe
- 1x 16mm Flat probe
- 2x Removable Li-ion battery packs
- 1x Charging base with A/C adapter
- 1x Instruction manual
- 1x Carrying case
Warranty
Liger warrants each product manufactured by it to be free from defects in material and workmanship under normal use and service for the period(s) set forth below.
Liger’s obligation under this warranty is limited to the repair or replacement, as its sole option, of any product, or part thereof, which has been returned to it or its Distributor within the applicable time period shown below, after delivery of the product to the original purchaser, and which examination discloses, to Liger’s satisfaction, that the product is indeed, defective.
This warranty does not apply to any product, or part thereof, which has been repaired or altered outside Liger’s factory in a way so as, in Liger’s judgment, to affect its stability or reliability, or which has been subjected to misuse, neglect, or accident.
This warranty is in lieu of all other warranties, express or implied, including without limitation, the warranties of merchantability and fitness for a particular purpose, and of all other obligations or liabilities on the part of Liger.
Liger neither assumes nor authorizes any other person to assume for it any other liability in connection with the sale or use of any of Liger’s products.
Notwithstanding any other provision herein or in any other document or communication, Liger’s liability with respect to this agreement and products sold hereunder shall be limited to the aggregate purchase price for the goods sold by Liger to the customer.
Liger disclaims any liability hereunder or elsewhere in connection with the sale of this product, for indirect or consequential damages.
This warranty and the rights and obligations hereunder shall be construed under and governed by the laws of the State of Utah, United States of America (USA). The sole forum for resolving disputes arising under or relating in any way to this warranty is the 3rd District Court of Utah, USA. Liger, its dealers, and representatives reserve the right to make changes in equipment built and/or sold by them at any time without incurring any obligation to make the same or similar changes on equipment previously built and/or sold by them.
